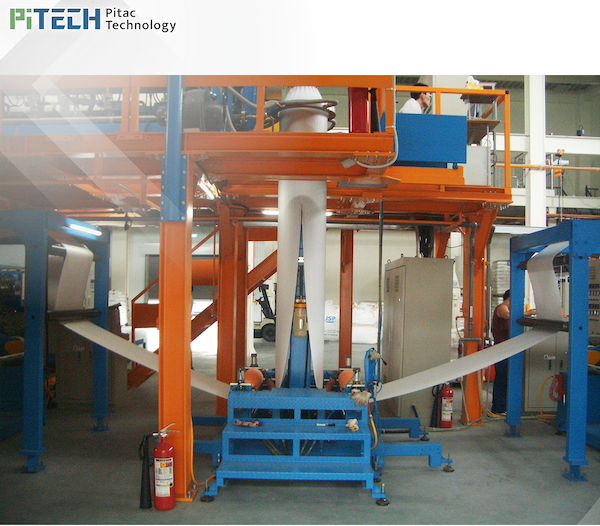

The Tandem Type Plastic PP Foam Sheet Extrusion Line has tandem type extruder design that gives maximum flexibility of back-pressure management and low shear screw design that suitable for low density semi-crystalline polymers foam extrusion process. Contact us right away for more product information!
Product Features
All machines supplied by PiTECH are guaranteed to have our best after-service. The fastest and best service will allow our customers to shorten the delivery time and profit immediately.
| PT-150PPF | PT-300PPF | |
|---|---|---|
| Raw material | High melting strength Polypropylene | High melting strength Polypropylene |
| Blowing anent | Butane or HFC | Butane or HFC |
| Capacity | 150 kg/hr | 300 kg/hr |
| Products Thickness (max.) | 5mm | 5mm |
| Products Width (max.) | 800mm | 800mm |
| Occupation Area | 70M(L)x40M(W)x16M(H) | 70M(L)x40M(W)x16M(H) |
| Shipping | 40’Container x 6 | 40’Container x 6 |
| EXTRUDER UNIT | ||
| Extruder Type | Tandem Type | Tandem Type |
| First Extruder Screw Dia. | 120mm | 150mm |
| Sec Extruder Screw Dia. | 150mm | 2000mm |
| Blowing Agent Injection | Pressure Pump | Pressure Pump |
| Screen Changer | Two-shift Changed | Two-shift Changed |
| Cooling System | Air / Water / Thermo-oil | Air / Water / Thermo-oil |
| Auto-Thermal Control | 12 zones | 12 zones |
| Resin temperature & pressure sensor | 2 zones | 2 zones |
| Die Head | ||
| Type | Circular Die | Circular Die |
| Static mixer | Available | Available |
| Die temperature controller | 2 sets | 2 sets |
| Resin temperature & pressure sensor | 1 zone | 1 zone |
| Cooling Drum | ||
| Drum cooling | Chilling water circulating | Chilling water circulating |
| Take-off unit roller width (mm) | 1000 | 1500 |
| Line speed (M/min) | 15 | 30 |
| Laminating unit (*1) | ||
| Laminating layer thickness (μ) | 50-120 | 50-120 |
| Laminating surface | Single / Double side | Single / Double side |
| Output (kg/hr) | 150 | 300 |
| Extruder Screw diameter (mm) | 80 x 2 sets | 120 x 2 sets |
| Extruder heating zone | 5 | 5 |
| Barrel cooling | Air-blower | Air-blower |
| T-Die maximum width (mm) | 1250 | 1250 |
| T-Die heating zone | 5 | 5 |
| Laminating roller diameter (mm) | 450 | 600 |
| Winder | ||
| Winder | 2 sets | 2 sets |
| Winder shaft | Expandable shaft design | Expandable shaft design |
| Driving | Siemens with tension controlled | Siemens with tension controlled |
| Maximum roll diameter (mm) | 1000 | 1500 |
| Control system | ||
| Controlling system | PLC | PLC |
| Operating interface | Manual operating | PC-Based interface |
| Remote control & Trouble-shooting | Yes | Yes |
*1：This is optional equipment
