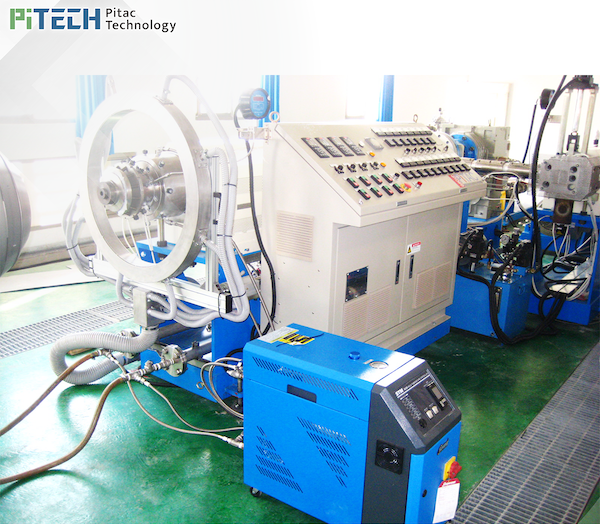

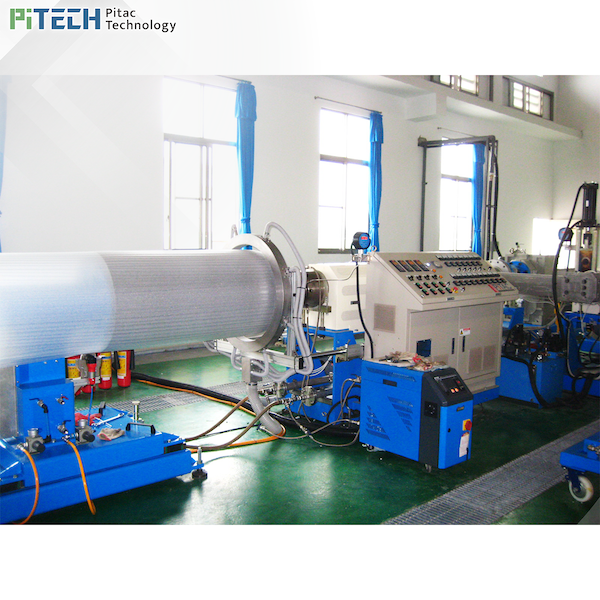

Close Structure Plastic PE Foam Sheet Extrusion Line is operating by using LDPE as the raw material and LPG or HFC as the blowing agent. LDPE foam sheet mainly is applying as packing material, with physical foaming to create close cell structure providing excellent shock-proof. Contact us right away to know more product detailed information!
Product Features
“SERVICE ABOVEALL” &“ESTEEM FOR CUSTOMER” are PiTECH (Plastic Technology)'s managing policies. From R & D Development, Components Processing, Devices Assembly to Pilot Run, we have assigned qualified professional engineers to take care to meet customers outstanding demand.
| PT-120PEP | |
|---|---|
| Raw material | Low density Polyethylene |
| Blowing anent | Butane or HFC |
| Capacity | 120 kg/hr |
| Products Thickness (max.) | 10mm |
| Products >Width (max.) | 1500mm |
| Occupation Area | 25M(L)x5M(W)x5M(H) |
| Shipping | 40’Container x 1 & 20’Container x 1 |
| EXTRUDER UNIT | |
| Extruder Type | Tandem Type |
| First Extruder Screw Dia. | 90mm |
| First Extruder motor | 100HP |
| Sec Extruder Screw Dia. | 120mm |
| Sec Extruder motor | 75HP |
| Heating Capacity | 45KW |
| Blowing Agent Injection | Pressure Pump |
| Screen Changer | Two-shift Changed |
| Cooling System | Air & Water |
| Auto-Thermal Contro | 10 zones |
| Circular-Die | 1 Set |
| SHEET SETTING & CUTTING UNIT | |
| Type | Single sheet |
| Width Setting | By aluminium circular tank |
| Cooling | By water circulating cooling |
| Cutting Type | By knife |
| TAKE-UP UNIT | |
| Type | Single sheet |
| Roller Width | 1650mm |
| Driving Motor | 7.5 HP motor |
| Line Speed | 50M/min (max) |
| WINDER | |
| Type | Two roller exchanging r |
| Driving Motor | 1 kg-m torque motor r |
| Winding Length Setting | By microcomputer (with alarm) r |
