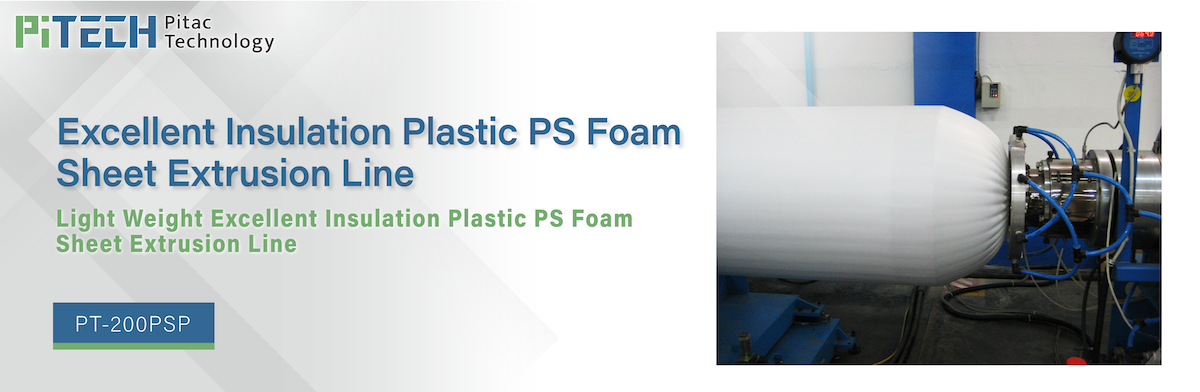

Food Container Plastic PS Foam Sheet Extrusion Line

Food Container Plastic PS Foam Sheet Extrusion Line is one of the products that PiTECH is specialized in. It's operating by using GPPS as the raw material, and LPG as the blowing agent.
GPS foam sheet mainly is using for Food Container purpose, with outstanding insulation & light weight advantage. With Excellent Insulation Plastic PS Foam Sheet Extrusion Line, the sheet width can be from 600mm to 1500mm, and the thickness is from 1.5mm to 5mm. The machine output can be from 60kg/hr to 300kg/hr. Contact us right away if you're interested!

Features
Specification

Product Features

GPPS foam sheet mainly is using for Food Container purpose, with excellent insulation & light weight advantage.
Sheet width can be from 600mm to 1500mm, and the thickness is from 1.5mm to 5mm.
Machine output can be from 60kg/hr to 300kg/hr.

PiTECH (Plastic Technology) has comprehensive expertise in organization of production lines and machine design, we have been dedicating ourselves in the field of Plastic Extrusion Process. Plenty of whole plant exporting experience, we are in the position to provide our customers organizing the factory running, installing facilities & side equipment and Know-How of Chemical Formula.

	PT-200PSP
Raw material	General Purpose Polystyrene
Blowing anent	Butane or HFC
Capacity	200 kg/hr
Products Thickness (max.)	5mm
Products >Width (max.)	1500mm
Occupation Area	25M(L)x5M(W)x5M(H)
Shipping	40’Container x 1 & 20’Container x 1
EXTRUDER UNIT
Extruder Type	Tandem Type
First Extruder Screw Dia.	90mm
First Extruder motor	100HP
Sec Extruder Screw Dia.	120mm
Sec Extruder motor	75HP
Heating Capacity	45KW
Blowing Agent Injection	Pressure Pump
Screen Changer	Two-shift Changed
Cooling System	Air & Water
Auto-Thermal Contro	10 zones
Circular-Die	1 Set
SHEET SETTING & CUTTING UNIT
Type	Single sheet / Double sheet
Width Setting	By aluminium circular tank
Cooling	By water circulating cooling
Cutting Type	By knife
TAKE-UP UNIT
Type	Single sheet / Double shee
Roller Width	1650mm
Driving Motor	7.5 HP motor
Line Speed	50M/min (max)
WINDER
Type	Two roller exchanging
Driving Motor	1 kg-m torque motor
Winding Length Setting	By microcomputer (with alarm)
