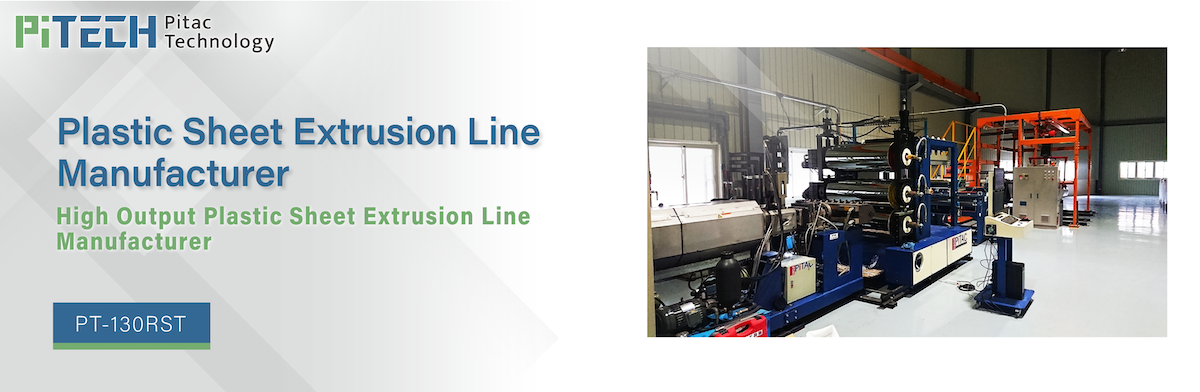

Plastic Sheet Extrusion Line Manufacturer

Plastic Sheet Extrusion Line Manufacturer's screw is designed with new special mixed material and high plasticity so that flux plastic with high output. T-die is designed by special design, which makes sure sheet thickness more nicety. Contact us right now for further product information!

Features
Specification

Product Features

Temperature auto control, it will exactly control plasticity process, and sheet thickness.
Forming roller platform adopts vertical inclined collocation, which can lift up and down, it supplies more options in operations in operation for producing thick board thin board, and enhance quality of board.
Forming roller loop cooling system, matching with mould temperature controller to control temperature, which ensures even thickness of board.
Trimmer device can set width of product as you want, we fix automatic meter counter which can set the length of product.

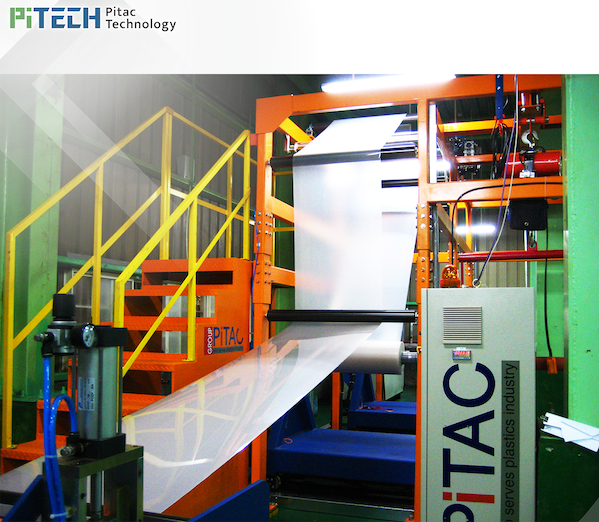

Winder device, which adopts high grade torque motor, matching with automatic tension controlling, which can adjust speed and winding tension to get an even surface for thin board.

	PT-130RST
Raw Material	Polypropylene
Capacity (max)	350 kg/hr
Products Thickness (max.)	0.2-1.8 mm
Products Width (max.)	900 mm
Occupation Area	35M(L)x15M(W)x8M(H)
Shipping	40’Container x 3
EXTRUDER UNIT
Extruder Type	Single Type
Extruder Screw Dia.	130 mm
Screen Changer	wo-shift Changed
Cooling System	Air
Auto-Thermal Control	5 zones
Resin Temperature & Pressure Sensor	2 zones
Die Head
Type	T-Die
Gear Pump	Available
Die Temperature Controller	5 sets
Take-Off unit
Mirror Roller	3 sticks
Mirror Roller Width (mm)	1200
Electroplating Roller	2 sticks
Electroplating Roller Width (mm)	1200
Driving Motor (HP)	5
Trimmer unit
Roller	5 sticks
Roller Width (mm)	1200
Driving Motor (HP)	3
Trimming Knife & Crushing Unit	1 sets
Static Eliminator	2 sets
Winder
Winder	2 sets
Driving	Siemens with tension controlled
Driving Motor (HP)	5
Control system
Controlling system	PLC
Operating interface	PC-Base
