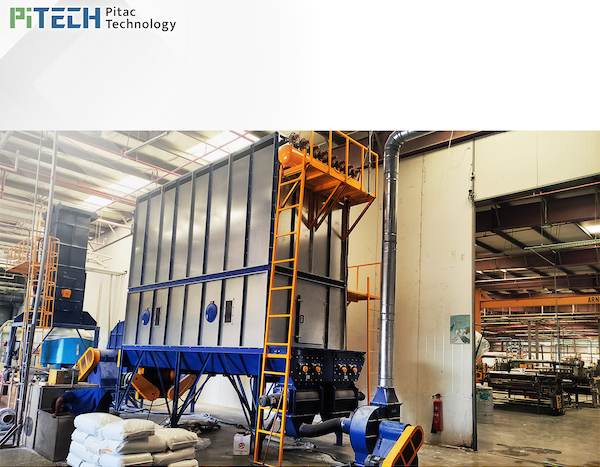

Foam Plastic Material Recycling and Pelletizing Machine features with simple process, all in one design, including crusher, feeder, extruder, and pelletizer. The speed of the feeder can be adjusted in difference expanded ratio material, maintain stable capacity. Do contact us for more product details right away!
Product Features
We use PLC for process improvement to reduce customer's dependency on manpower. It has remote monitoring and debugging functions, which can shorten the downtime to the minimum providing the best after-sale service to our customers.
| EXP-200 | |
|---|---|
| Raw Material | Expanded PS / PE / PP |
| Capacity | 200 kg/hr |
| Power Consumption | 70 KW |
| Machines Weight | 2,800 kgs |
| Occupation Area | 10M(L)x5M(W)x2M(H) |
| Shipping | 20’Container x 1 |
| MAIN EXTRUDER | |
| Extruder Type | Single Type |
| Screw Diameter | 150 mm |
| Driving Motor | 40 HP |
| Heating System | Electric Stainless Heater |
| Cooling System | Blower |
| Auto-Thermal Control | 4 zones |
| Heater Capacity | 12 KW |
| SCREEN CHANGER | |
| Type | Two-Shift Changing |
| Driving | Hydraulic cylinder |
| Hydraulic Pump | 3 HP |
| SUB-EXTRUDER | |
| Screw Diameter | 100 mm |
| Driving Motor | 20 HP |
| Heating System | Electric Stainless Heater |
| Auto-Thermal Control | 4 zones |
| Heater Capacity | 8 KW |
| SCREEN CHANGER (SUB-EXTRUDER) | |
| Type | Two-Shift Changing |
| Driving | Hydraulic cylinder |
| Hydraulic Pump | 2 HP |
| COOLING TANK | |
| Cooling System | |
| Water Pump | 1/2 HP |
| Cutting Type | Rotary Cutting |
| PELLETS GRANULATOR | |
| Driving Motor | 5 HP |
